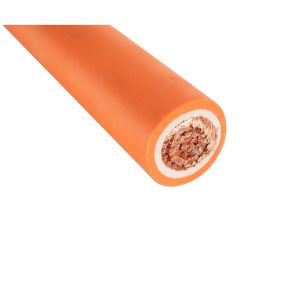

Low Voltage Power Cable Earth Wire 1c PVC V-90 Insulation Cable

Ask Lasest Price
Certification :	ISO9001, CE, CCC, SAA
Supply Ability :	50000K Meter/ per Month
Brand Name :	Qifan
Price :	usd3-8/meter
Delivery Time :	30-45days
Payment Terms :	D/A, D/P, L/C, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

Low Voltage Power Cable Earth Wire 1c PVC V-90 Insulation Cable

Product Description

0.6/1KV earth wire 1C 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 PVC V-90 insulation cable

Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services

Construction:
1. Conductor - Plain annealed class 2 /5 flexible copper
2. Fire Resistant layer - Mica Tape
3. Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)
4. Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)

Cross Section:
1 core: 1.5~630mm2

Temperature characteristics:
Conductor operating temperature: -40ºC~110ºC
Min. temperatrue laying condition: 0ºC

Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min

Color:
Insulation: White or according to customer requirements
Sheath: Red or according to customer requirements

Standard:
Cable design: AS/NZS5000.1
Conductor: AS/NZS 1125
Fire resistant : AS/NZS3013 (WS52W)

Cond. Area mm	Stranding No/mm	Insulation Thick mm	Sheath Thick mm	Nom.O/D mm	Min. Installed Bending Radius mm	Approx. Mass Kg/Km	Order Now
1	1x1/1.13	0.6	0.8	4.1	20	30
1.5	1x7/0.50	0.6	0.8	4.5	20	40
2.5	1x7/0.67	0.7	0.8	5.2	25	55
4	1x7/0.85	0.8	0.9	6.2	25	80
6	1x7/1.04	0.8	0.9	6.8	30	100
10	1x7/1.35	1	0.9	8.2	35	145
16	1x7/1.70	1	1	9.4	40	225

Other sizes can also be produced as you required.

Size	Conductor Strands	Insulation Thickness
2x1.5mm2	7/0.52mm	0.6mm
2x2.5mm2	7/0.68mm	0.7mm
2x1.5mm2+1.5mm2	7/0.52mm	0.6mm
2x2.5mm2+2.5mm2	7/0.68mm	0.7mm
2x4mm2+2.5mm2	7/0.85mm+7/0.68mm	0.8mm
2x6mm2+2.5mm2	7/1.04mm+7/0.68mm	0.8m

0.6/1kv Earth Wire 1c 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 PVC V-90 Insulation Cable

Fang Yu (Shanghai) Automation Technology Co., Ltd. Cable has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, ISO50001 energy management system certification, and two integration management system certification. It has also received the title of national green factory.

Fang Yu (Shanghai) Automation Technology Co., Ltd. These include over 30 series of products, such as plastic-insulated power cables for land and submarine applications ranging from 500kV down to 0.5kV, rubber-insulated wires and cables ranging from 35kV down to 1kV, overhead insulated cables, overhead wires, mine cables, fire-resistant cables, high-temperature cables, extremely cold-resistant cables, cables for offshore engineering equipment, control cables, computer cables, photovoltaic cables, new energy vehicle cables, building wires, and network wires. In total, there are nearly 4,000 types and over 50,000 specifications.
