0.6/1kV low voltage overhead ABC CABLEIntroduction
ABC Cable used for low voltage ( 1500V ) overhead transmission line
, Phase line is aluminum conductor , PE or XLPE insulated , the
number of phase line will be two or three or four , Neutral line is
aluminum conductor , it can be bare conductor or with PE or XLPE
insulated
Specifications
Standard: National Standard IEC and ASTM
Rated Voltage: 0.6/1KV, 11KV, 33KV
Construction
Phase conductor: aluminum stranded(AAC)
Neutral conductor: aluminum stranded(AAC), aluminum alloy
stranded(AAAC), aluminum conductor steel reinforced(ACSR)
Insulation: XLPE or PE
Application: The cables are designed for aerial power lines and
room-entrance wires with voltage up to and including 0.6/1KV.
Uesd for overhead service application such as street linghting,
outdoor lighting and temporary service for cunstruction.which
improves the safety and reliance of electrified wire netting.
1 Type
Duplex Service Drop, Triplex Service Drop, Quadruplex Service Drop
a Duplex Service Drop
Applications:To supply 120 volt aerial service for temporary service at
construction sites,outdoor or street lighting . For service at 600
volts or lower at a conductor temperature of 75 maximum.
b Triplex Service Drop
Applications: To supply power from the ulility`s lines to the consumer`s
weatherhead. For service at 600 volts or less(phase to phase ) at a
conductor temperature of 75 maximum for PE insulation or 90 maximum
for XLPE insulation .
c Quadruplex Service Drop
Applications: Used to supply 3 phase power , usually from a pole-mounted
transformer to the use`s servic head where connection to the
service entance cable is made . To be used at voltages of 600 volts
or less phase to phase and at conductor temperature not to exceed
75 for PE insulated conductors or 90 for XLPE insulated conductors.
2 Construction
a Phase Conductor construction:The phase conductor is aluminum alloy 1350-H19 hard-drawn,
compressed concentric-lay-stranded.
b Neutral Conductor Construction
Cable assemblies are available with the following neutral
conductors:
Aluminum conductors, coated-steel reinforced (ACSR),
concentric-lay-stranded
Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded
Aluminum alloy 6201-T81, concentric-lay-stranded
c Insulation Material
The standard insulation on the phase conductor is black low-density
crosslinked polyethylene (XLPE)
Alternatively, black linear low-density polyethylene (LDPE)
insulation with a 75°C temperature rating is available upon
request.
| Phase conductor |
| Nominal cross section area | Mm2 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 |
| Number of cores | | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Roots/diameter of phase conductor | | 7/1.35 | 7/1.7 | 7/2.14 | 7/2.54 | 7/3.0 | 19/2.16 | 19/2.54 | 19/2.86 |
| Approx diameter of compacted conductor | mm | 4.05 | 4.8 | 6 | 7 | 8.3 | 10 | 11.6 | 13.2 |
| Nominal thickness of insulation | mm | 1.0 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 |
| Diameter of phase core | mm | 6.05 | 7.2 | 8.4 | 9.8 | 11.1 | 12.8 | 14.8 | 16.4 |
| Max D.C resistance at 20ºC | Ω/KM | 3.08 | 1.91 | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 |
| Approx weight of phase core | Kg/km | 127.24 | 196.29 | 277.24 | 380.8 | 510.47 | 686.22 | 954.14 | 1176.96 |
| Messenger conductor |
| Nominal cross section area | Mm2 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 |
| Number of cores | | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Roots/diameter of phase conductor | | 7/1.35 | 7/1.7 | 7/2.14 | 7/2.54 | 7/3.0 | 19/2.16 | 19/2.52 | 19/2.82 |
| Approx diameter of messenger core | mm | 4.05 | 5.1 | 6.42 | 7.62 | 9 | 10.8 | 12.6 | 14.1 |
| Max D.C resistance at 20ºC | Ω/KM | 3.08 | 1.91 | 1.2 | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 |
| Approx weight of messenger core | Kg/km | 27.62 | 43.8 | 69.4 | 94.71 | 136.38 | 192.98 | 262.66 | 328.94 |
| Breaking load | KN | 1.65 | 2.07 | 3.3 | 4.5 | 6.2 | 8.9 | 12.3 | 15.6 |
| Complete cable |
| Approx diameter | mm | 13.43 | 16.15 | 19.13 | 22.32 | 25.59 | 29.4 | 34.49 | 38.84 |
| Approx weight | Kg/km | 154.86 | 240.09 | 346.64 | 475.51 | 646.85 | 879.2 | 1216.8 | 1505.9 |
| Packing length | M/Drum | 1000 | 1000 | 1000 | 1000 | 1000 | 500 | 500 | 500 |
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206
engineers. Plant has a series of imported production lines
including Niehoff copper drawing lines, Troster Germany and
Maillefer Finland 500KV VCV lines, stranding machine from Pourtier
France, SKET Germany, Caballe Spain, 220KV and 35KV production line
plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from
Germany- Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant
passed TUV, VDE, UL, CE, SAA, BS etc. certificate.- Perfect Production system
Qifan Cable products cover LV power cable, MV power cable,
HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW
,submarine cable, control cable, instrumentation cable, building
wire, flexible rubber cable, fire rated cable, renewable cable,
solar cable, industrial cable, Lan cable, coaxial cable etc.- Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products,
Skilled Export sale engineer team, Reasonable price, Reliable
quality, Friendly service. Qifan is always your best choice.
Main products: 220kv and below power cables, rubber sheathed
cables, photovoltaic wires, photovoltaic special cables, control
cables, computer cables, steel core aluminum stranded wires,
pre-branch cables, low voltage halogen-free environmentally
friendly cables, coal mining cables, fluorosilicone insulation High
temperature resistant cables, shield cables, cables for ship
electrical equipment, photoelectric composite cables, high-strength
towing cables, cables for photovoltaic systems, cables for rail
transit vehicles with AC rated voltage 3kv and below, local area
network cables, inverter cables, radio frequency cables , nuclear
power plant cables, port machinery cables, mineral insulated
cables, submarine cables and more than 100 varieties
FAQ
Q1: When can I get the price?
We usually quote within 12 hours after we get your inquiry. If you
are very urgent to get the price, please call us or tell us in your
email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our
quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the
samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place
the order.The best record we keep is delivering 10 kilometers cable
within a week. Generally speaking, we suggest that you start
inquiry two months before the date you would like to get the
products at your country.

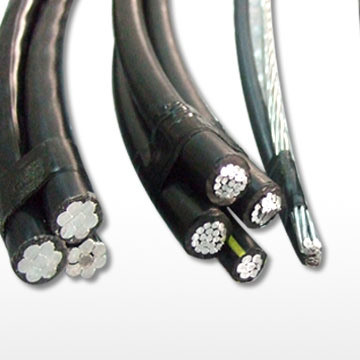

Overhead Aerial Bundled Cable (ABC Cable) is a type of power
distribution cable designed for overhead installations. It is
commonly used in electrical distribution networks to deliver
electricity to residential, commercial, and industrial areas. Here
are some key features and characteristics of ABC Cable:
Configuration: ABC Cable consists of multiple insulated conductors
bundled together with a neutral messenger wire. The conductors are
typically made of aluminum or copper, while the messenger wire is
usually made of steel or aluminum alloy. The bundled configuration
provides mechanical strength, reduces the risk of contact with live
conductors, and simplifies installation.
Insulation: The conductors in ABC Cable are insulated to provide
electrical insulation and protect against external environmental
factors. The insulation is typically made of materials such as
cross-linked polyethylene (XLPE) or high-density polyethylene
(HDPE). These materials offer excellent electrical properties,
durability, and resistance to moisture, UV radiation, and harsh
weather conditions.
Voltage Rating: ABC Cable is available in various voltage ratings
to suit different applications. Common voltage ratings include
0.6/1kV, 10kV, and 20kV, depending on the specific requirements of
the electrical distribution system.
Benefits: ABC Cable offers several advantages over traditional bare
conductor systems. These include reduced electrical losses,
improved safety due to insulation, lower maintenance requirements,
and enhanced reliability in challenging environmental conditions.
Installation: ABC Cable is typically installed on overhead support
structures such as poles or towers. The bundled configuration
allows for easier installation, as multiple conductors can be
installed simultaneously. Additionally, the neutral messenger wire
provides mechanical support and reduces the sag of the conductors.
Application: ABC Cable is commonly used for power distribution in
residential areas, rural areas, and locations where overhead
installation is preferred. It is suitable for both short-distance
and long-distance power distribution, offering cost-effective
solutions for electrical networks.
